Forani Pecorari Pumps

bronze marine pumps specialists

Idromeccanica Forani & Pecorari snc has been designing and building heavy duty bronze marine pumps for over 40 years. The wide range of pumps have been specifically designed and built for small and medium tonnage fishing boats:

AM SERIES SELF-PRIMING BARE SHAFT AND MOTOR PUMP UNITS
CM SERIES CENTRIFUGAL BARE SHAFT AND MOTOR PUMP UNITS
PC SERIES SELF-PRIMING BARE SHAFT AND MOTOR PUMP UNITS
TS SERIES SELF-PRIMING BARE SHAFT AND MOTOR PUMP UNITS
AT SERIES SELF-PRIMING CLOSE COUPLED MACERATOR PUMP UNITS
CT SERIES CLOSE COUPLED MACERATOR MOTOR PUMP UNITS

AM series:

SELF-PRIMING BARE SHAFT AND MOTOR PUMP UNITS

The AM pumps are centrifugal self-priming models. The smaller sizes (DN 40-50) can be supplied for clockwise or anti-clock rotation and all AM models are characterised by high flow.   Tombstone Plot

Am self priming bare shaft forani pumps
  • Bilge / deckwash
  • Fire Lines
  • Ballast Transfer

Pump casing: Bronze
Impeller:
 Bronze
Shaft:
 316 Stainless Steel
Bearing Housing:
 cast iron
Seal: carbon / ceramic / NBR

AM40D5

Guide Price £2090

1.5" bronze self-priming bare shaft pump - clockwise rotation

data sheet

AM40D5EM2T50

Guide Price £2450

1.5" bronze self-priming electric motor pump unit

data sheet

AM40S

Guide Price £1985

1.5" bronze self-priming bare shaft pump - anti-clock rotation

data sheet

AM50D5

Guide Price £2410

2" bronze self-priming bare shaft pump - clockwise rotation

data sheet

AM50D5EM2T50

Guide Price £2940

2" bronze self-priming electric motor pump unit

data sheet

AM50S

Guide Price £2380

2" bronze self-priming bare shaft pump - anti-clock rotation

data sheet

AM65D200A

Guide Price £6715

2.5" bronze self-priming bare shaft pump - clockwise rotation

data sheet

AM65D200AEM2T50

Guide Price £8765

2.5" bronze self-priming electric motor pump unit

data sheet

ABOVE ARE OUR MOST POPULAR PUMPS IN THIS SERIES
PLEASE CONTACT US FOR MORE DETAIL S ON THE OTHER VARIATIONS

Contact sales Team

CM Series

CENTRIFUGAL BARE SHAFT AND MOTOR PUMP UNITS

The CM models are end suction centrifugals and can be supplied for clockwise or anti-clock rotation and

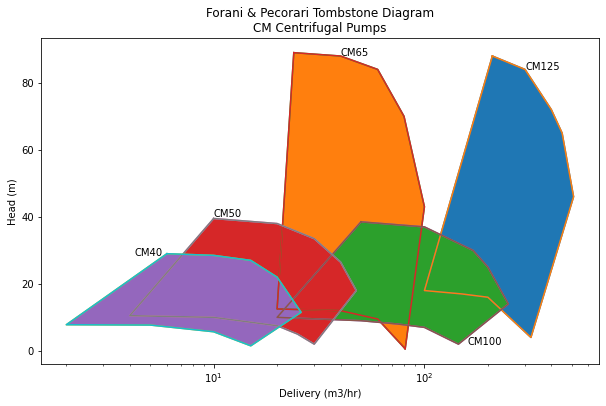

are characterised by high flow.   Tombstone Plot

CM centrifugal bare shaft forani pumps
  • Deckwash
  • Fire Lines
  • Ballast Transfer

Pump casing: Bronze
Impeller:
 Bronze
Shaft:
 316 Stainless Steel
Bearing Housing:
 cast iron
Seal: carbon / ceramic / NBR

CM40D150

Guide Price £1733

1.5" bronze end suction bare shaft pump - clockwise rotation

data sheet

CM40D150EM2T50

Guide Price £2090

1.5" bronze end suction electric motor pump unit

data sheet

CM50D170

Guide Price £1940

2" bronze end suction bare shaft pump - clockwise rotation

data sheet

CM50D170EM2T50

Guide Price £2465

2" bronze end suction electric motor pump unit

data sheet

CM65D200

Guide Price £4790

2.5" bronze end suction bare shaft pump - clockwise rotation

data sheet

CM100D175

Guide Price £5280

4" bronze end suction bare shaft pump - clockwise rotation

data sheet

CM100D175EM4T50

Guide Price £5660

4" bronze end suction electric motor pump unit

data sheet

CM125D225

Guide Price £6625

5" bronze end suction bare shaft pump - clockwise rotation

data sheet

ABOVE ARE OUR MOST POPULAR PUMPS IN THIS SERIES
PLEASE CONTACT US FOR MORE DETAI LS ON THE OTHER VARIATIONS

Contact sales Team

PC Series

SELF-PRIMING BARE SHAFT AND MOTOR PUMP UNITS

The side channel PC pump series have an excellent self-priming capability. For all models the direction of
rotation can be reversed.

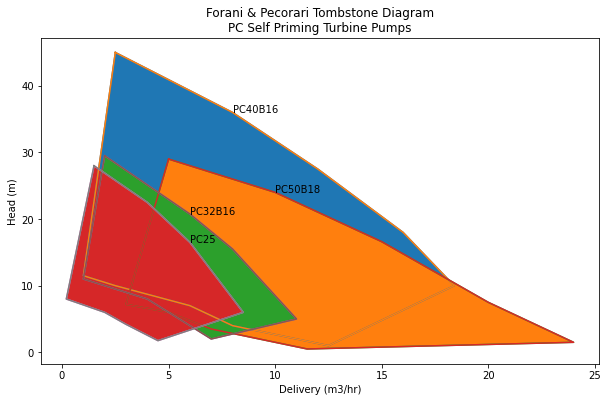

Tombstone Plot

PC self priming forani pumps
  • Bilge / deckwash and general service duties
  • Engine cooling

Pump casing: Bronze
Impeller:
 Bronze
Shaft:
 316 Stainless Steel
Bearing Housing:
 cast iron
Seal: carbon/ceramic/NBR

PC25

Guide Price £573

1" bronze self-priming bare shaft pump

data sheet

PC25EM4T50

Guide Price £750

1" bronze self-priming electric motor pump unit

data sheet

PC25EM2T50

Guide Price £664

1" bronze self-priming electric motor pump unit

data sheet

PC25EM24VCC

Guide Price £1125

1" bronze self-priming electric motor pump unit

data sheet

PC40B14

Guide Price £1165

1.5" bronze self-priming bare shaft pump

data sheet

PC40B14EM4T50

Guide Price £1205

1.5" bronze self-priming electric motor pump unit

data sheet

PC40B14EM24VCC

Guide Price £1795

1.5" bronze self-priming electric motor pump unit

data sheet

ABOVE ARE OUR MOST POPULAR PUMPS IN THIS SERIES
PLEASE CONTACT US FOR MORE DETAILS ON THE OTHER VARIATIONS

Contact sales Team

TS Series

Selfpriming close coupled motor pump units

The TS series consist of three sizes self-priming high performance side channel pumps.
Tombstone Plot

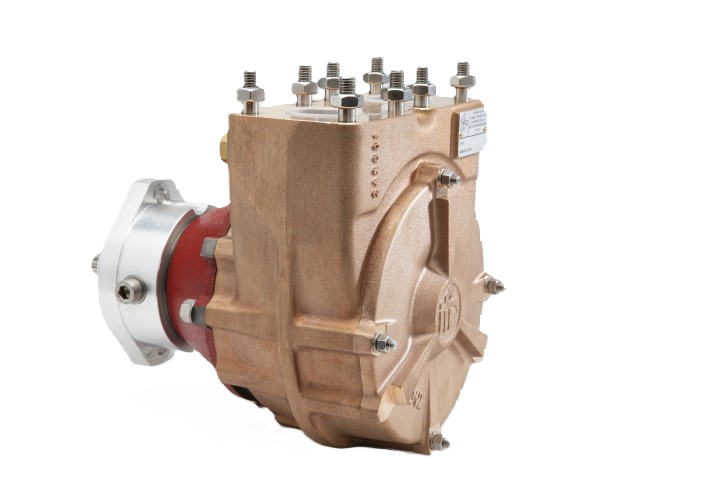

TS self priming close couple forani pumps
  • Bilge deckwash and general service duties
  • Engine cooling

Pump casing: Bronze
Impeller:
 Bronze
Shaft:
 316 Stainless Steel
Bearing Housing:
 cast iron
Seal: carbon / ceramic / NBR

TS40D14

Guide Price £1980

1.5" bronze self-priming bare shaft pump

data sheet

TS50D18

Guide Price £2465

2" bronze self-priming bare shaft pump

data sheet

TS65B15

Guide Price £3710

2.5" bronze self-priming bare shaft pump

data sheet

above are our most popular pumps in this series
please contact us for more detais on the other variations

Contact sales Team

AT Series

Selfpriming close coupled motor pump units

The AT models are self-priming macerator pumps with star impeller and integrated grinder. ​These models are designed for black and grey tank pump-out.

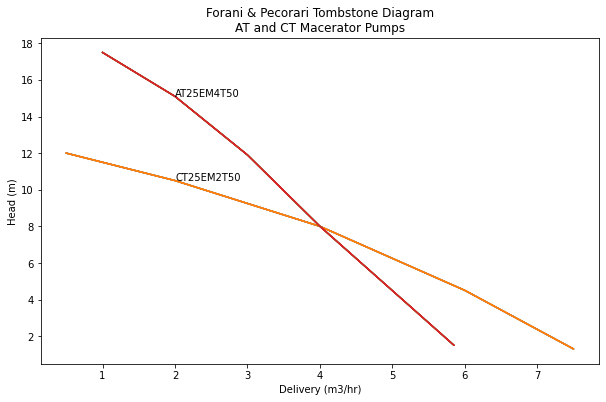

Tombstone Plot

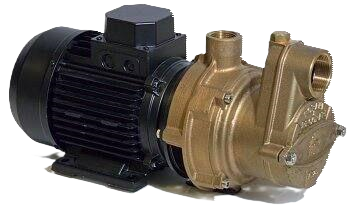

AT self priming close coupled forani pumps

Pump casing: Bronze
Impeller:
 Bronze
Shaft:
 316 Stainless Steel
Seal: carbon / ceramic / NBR

  • Black and grey waste water handling

AT25EM4T50

Guide Price £1562

1" bronze self-priming macerator electric motor pump unit

data sheet

AT25EM24VCC

Guide Price £2150

1" bronze self-priming macerator electric motor pump unit

data sheet

above are our most popular pumps in this series
please contact us for more detais on the other variations

Contact sales Team
Disclaimer: The information contained on this page is accurate as of the date of publication, however the details and pricing of the offerings listed herein remain subject to change at any time. Please refer to the data sheets for the latest and most up to date product information.
